QP-00100C, Quick Pressure - 100PSI Tire Pressure Monitor Cap

• QP-00100C
• Tire Pressure Monitor Cap
• PSI: 100
• Designed, patented, assembled and tested in the U.S.A.
• Material:  Solid Brass
• Brass threads will not cause cross-threading
• Brass construction will not cause chemical reaction with valve stem
• 100% sealed to be airtight and watertight
• Precision welded, chrome plated and easy to install

This product is for monitoring tire pressure:  if the pressure is 10% less than required, the sight glass of the monitor cap will show red, otherwise it will show normal.

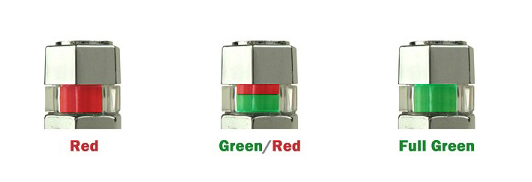

• Full green indicates the pressure is correct
• Partial green/red indicates that the tire is under-inflated by as little as 10%
• Full red indicates that the tire is under-inflated by 25%

Important:  This device ONLY checks your tires for UNDER pressure, it does not check for over inflation.

When installed, drive for 10 miles, the monitors will instantly indicate the tire pressure status through the clear window display.

Instructions:

1.  Unscrew and remove the existing valve stem caps (only the caps, not the stems) on your tires

2.  Make sure the O-ring seal is inside safety cap.  Installation without the seal can lead to tire deflation.

3.  Install a Safety Cap onto each of your valve stems by twisting in a clockwise fashion.  Firmly tighten each safety cap to create a seal with the valve.  Hand tighten ONLY.

4.  It is recommended that you check your installation for leaks with soapy water to insure proper seal.

5.  After installation allow 30 minutes for the safety cap to display accurate pressure readings.
